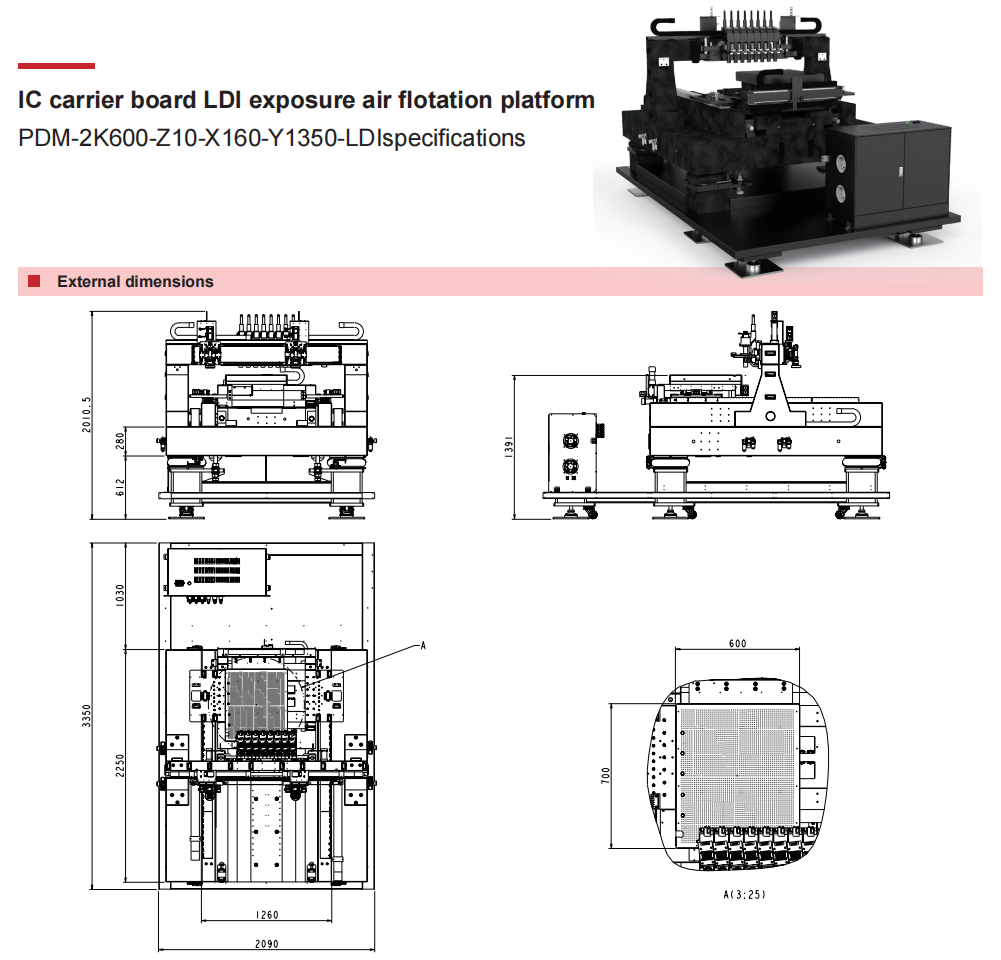

Ic carrier board LDl exposure air-floating stage

High dynamic performance.XY adopts a fully enclosed air floating guide rail with good stability.High precision zero expansion grating feedback is selected, with a low expansion coefficient and minimal influence from temperature drift.Z-axis uses magnetic springs to balance the load, customizable.The itinerary, size, and cables can be customized according to customer requirements.

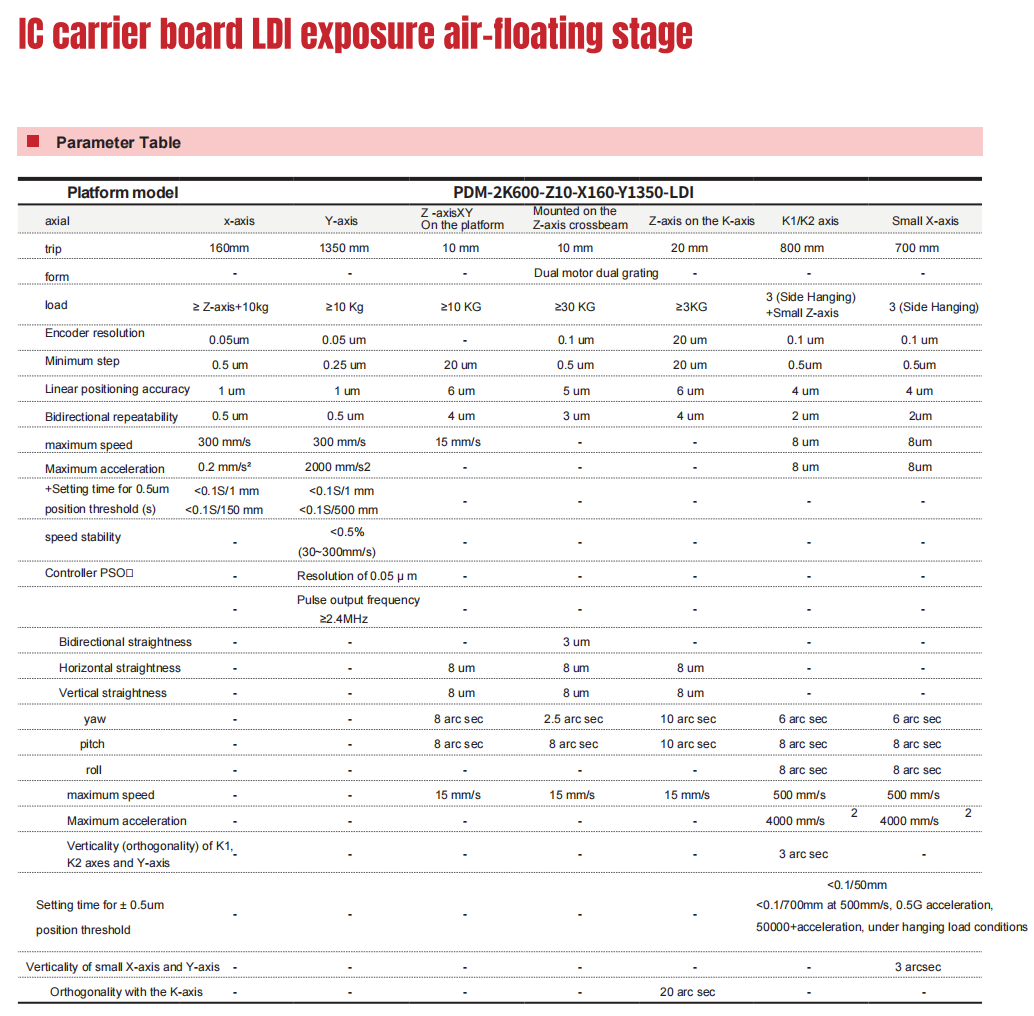

Product parameters
